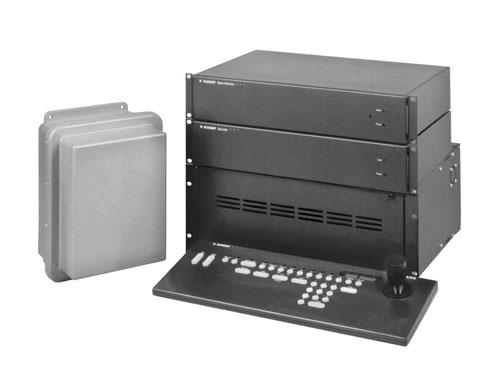

BOSCH LTC 8500 Series Allegiant Matrix/Control Systems - Modular

BOSCH LTC 8501/50

BOSCH LTC 8500 Series Allegiant Matrix/Control Systems - Modular

64 Camera by 8 monitor switching
8 Independent keyboards
Modular construction
Powerful alarm handling capabilities
SalvoSwitching and SatelliteSwitch capability
PC-based software package available

SİSTEM ÖZELLİKLERİ
DÖKÜMANLAR / SERTİFİKALAR / YAZILIMLAR

Video Inputs Standard: 64Satellite configuration: 256

Video Outputs 8

Keyboards 8

Alarm Inputs 128

Receiver Drivers Standard: 64Satellite configuration: 256

Video Bandwidth (-3 dB) 8 MHz typical

Differential Gain 3% maximum

Differential Phase 3° maximum

K Factor 0.5%

Signal-to-Noise-Ratio 60 dB minimum

Crosstalk (Input Isolation) 70 dB Typical at 3.58 MHz

Feed through (Input to Output Isolation) 50 dB Typical at 3.58 MHz

Gain Unity (into 75 Ohm termination)

Tilt 1% Typical

Temperature

Operating	0°C to 50°C (32°F to 122°F)
Storage	–40°C to 60°C (–40°F to 140°F)
Altitude	3000 m (10,000 ft)
Humidity	0 to 95% relative, non-condensing
Vibration	3 g swept sine wave, 15 Hz to 2000 Hz
Shock	50 g, 11 m/s, 1/2 sine wave
Includes LTC 8501/00 equipment rack, LTC 8511/00 microprocessor module, and LTC 8505 Series power supply.
PowerModel No.	Rated Voltage , Voltage Range , Nominal Power1
LTC 8501/60	120 VAC, 50/60 Hz , 100 to 140 , 192 W
LTC 8501/50	220-240 VAC, 50/60 Hz , 198 to 264 , 192 W
1. Power at rated voltage fully loaded.
Connectors
Video Inputs	1 to 64, 1 Sync input, and 8 monitor inputs
Outputs	BNC
9-pin D-type Connectors

Console	RS-232 port for external PC or control interface (default = 1200 baud)
Alarm	RS-232 port for Allegiant alarm accessory units (default = 1200 baud)
Printer	RS-232 port for system logging printer (default = 1200 baud)
SDA	TTL level, high-speed control data output (Bi-Phase) for interface to Allegiant series signal distribution units (data clock rate = 31.25 kHz)
Keyboards	Eight 6-pin RS-485 ports for Allegiant keyboard use (default = 9600 baud)
Size(W x D x H)	EIA 48 cm (19 in.) rack 483 x 356 x 178 mm (19 x 14 x 7 in.)
Weight	8.2 kg (18.2 lb)
Construction/Finish
Top and Bottom	Steel
Front, Sides, and Back	Aluminum
Finish	Charcoal
Size (D x H)	290 x 160 mm (11.5 x 6.25 in.)
Weight	0.34 kg (0.8 lb)
(LTC 8505/60–120 VAC, LTC 8505/50–220-240 VAC)
Size(W x D x H)	90 x 335 x 160 mm(3.46 x 13.2 x 6.25 in.)

Indicators	One power On/Off, seven fuse alert, and one external sync LED
Use up to eight (8) per equipment bay.
Camera Inputs	8
Size (D x H)	290 x 160 mm (11.5 x 6.25 in.)
Weight	0.23 kg (0.5 lb)
Use up to four (4) per equipment bay.
Monitor Outputs	2
Size (D x H)	290 x 160 mm (11.5 x 6.25 in.)
Weight	0.27 kg (0.6 lb)
Allegiant Accessories
The LTC 8500 Series accessory products provide many optional features to the base Allegiant switching systems. Accessory products include keyboards, keyboard extension kits, receiver/driver units, switcher/followers, and code merger units. All accessory products are designed to be installer-friendly and compatible throughout the Allegiant series systems. Refer to the Allegiant Accessories datasheet for complete details.
