BOSCH UML-463-90

BOSCH UML Family 46-inch HD LED monitor

HD1080TVL650WideViewingAngleLEDBacklightFastResponse



BOSCH UML-463-90



  • Full HD 1920 x 1080 resolution
  • Precise color reproduction
  • HDMI, DVI, VGA, S-Video inputs

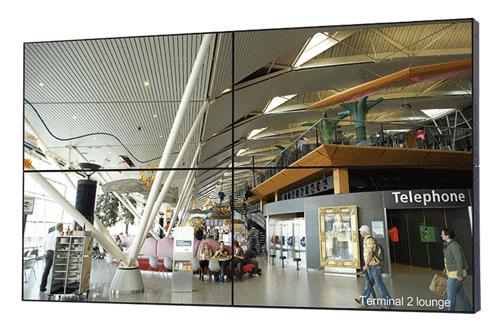

  • Super-slim bezel (5 mm width L+R) for seamless tiled wall mounting
  • High contrast ratio of 3500:1


Rated Voltage 120/230 VAC, 50/60 Hz
Voltage Range 100–240 VAC, 50/60 Hz
Frequency Horizontal: 60–73 KHzVertical: 47–63 Hz
Power at Rated Voltage On = 149 WActive Off = 0.5 W
Sync Format PAL/NTSC automatic detection
LCD Panel LED backlight
Viewable Picture Area 46 in.
Active Display Area (H x V) 1018.08 x 572.67 mm(40.08 x 22.55 in.)
Pixel Pitch (H x V): 0.53025 x 0.53025 mm(0.02088 x 0.02088 in.)
Resolution1 1920 x 1080
Aspect Ratio 16:9
Display Colors 1073.7 million
Response Time 6.5 ms (typical)
Backlight 50,000 hours
1. Pixel Policy: Bosch monitors follow the ISO 13406-2 Class II standard.

Luminance 450 cd/m2 (typical)
Contrast Ratio 3500:1 (typical)
Viewing Angle Horizontal/Vertical: 178° (typical)
Video Input
Composite Video (CVBS) 1.0 Vp-p (0.5–1.5 Vp-p), automatic switching from 75 Ohm unbalanced termination to Hi-Z with passive loop-through operation
Y/C (S-video) 0.7 Vp-p (Y-signal), 0.3 Vp-p (C-signal), 75 Ohm termination
Component Y, Pb, Pr
Digital Inputs DVI D (1 x) and HDMI (2 x)
VGA (RGB PC) 0.7 Vp-p (0.5–1 Vrms)
Audio Input 2.0 V line level, mono
RGB and DVI HDMI
640 x 480 (60/72/75 Hz) 640 x 480 (60/72/75 Hz)
720 x 400 (70 Hz) 720 x 400 (70 Hz)
800 x 600 (60/75 Hz) 800 x 600 (60/75 Hz)
1024 x 768 (60/75 Hz) 1024 x 768 (60/75 Hz)

1280 x 768 (60 Hz) 1280 x 768 (60 Hz)
1280 x 960 (60 Hz) 1280 x 960 (60 Hz)
1280 x 1024 (60 Hz) 1280 x 1024 (60 Hz)
1360 x 768 (60 Hz) 1360 x 768 (60 Hz)
1366 x 768 (60 Hz) 1366 x 768 (60 Hz)
1400 x 1050 (60 Hz) 1400 x 1050 (60 Hz)
1600 x 1200 (60 Hz) 1600 x 1200 (60 Hz)
1680 x 1050 (60 Hz) 1680 x 1050 (60 Hz)
1920 x 1080 (60 Hz) 1920 x 1080 (60 Hz)
  480i (60 Hz)
  480p (60 Hz)
  576i (50 Hz)
  576p (50 Hz)
  720p (25/3050/60 Hz)
  1080i (50/60 Hz)



1080p (24/25/30/50/60 Hz)
  1080p (24/25 Psf)
Input
Rear Control Panel Push-buttons
Remote control Push-buttons
Video Source Selects: Component Video, S-video, VGA, HDMI, DVI-D
Menu Selects on-screen display (OSD), up cursor, down cursor/auto adjust, left cursor, right cursor
Power On/Off
Control Panel Lockout Multiple push-button combination
On-screen Display
Video Mode Input Source, Screen, OSD, Utility
Indicators (on rear)
LED Power On (green)Power Off, Standby (red)
Connectors
Video 1 (AV1) Composite video: two (2) BNC (1 in, 1 out)

Digital Two (2) (1 DVI-D in, 1 DVI-D out)
IR Two (2) (1 in, 1 out)
Display port One (1) in
HDMI Two (2) in
VGA One (1): 1 RGB 15-pin D-sub in, 1 RGB 15-pin D-sub out
Component One (1): Y, Pb, Pr
Y/C (S-video) One (1) mini-DIN, 4-pin (1 in)
Audio 1 Audio In: RCA (right/left)1 Audio In: phono jack1 Audio Out: RCA (right/left)1 Speaker Out (right/left)
RS-232 Two (2) (1 in for firmware update, 1 out for firmware update)
Power Input 100 – 240 VAC
Power Output 100 – 240 VAC
Cabinet Material SECC
Finish Black
Mount Wall mounting compatible with standard bracket (optional)Desk mount (optional)
VESA Mounting Compliance 400 x 400 mm (15.7 x 15.7 in.)

Dimensions (W x H x D)
Monitor 1023.68 x 578.27 x 111.8 mm(40.30 x 22.77 x 4.4 in.)
With Packaging 1190 x 754 x 290 mm(46.85 x 30.08 x 11.42 in.)
Weight
Monitor Weight 25 kg (55.12 lb)
Shipping Weight 30 kg (66.14 lb)
Operating Temperature 0°C to +50°C (32°F to 122°F)
Storage Temperature 0°C to +50°C (32°F to 122°F)
Humidity 0% to 90% Relative
