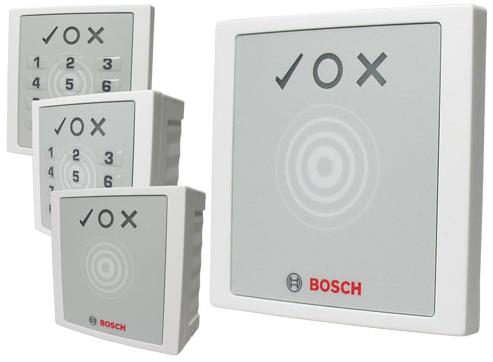

BOSCH DELTA 10xx - Bosch Proximity Reader

BOSCH ARD-1000MF-UP

BOSCH DELTA 10xx - Bosch Proximity Reader

BOSCH ARD-1000MF-UP BOSCH ARD-1000MF-AP BOSCH ARD-1010MF-UP

BOSCH ARD-1010MF-AP BOSCH ARD-1000HI1-UP

compact design, front cover, rear wall and housing for surface mounting are made from plastic
Concealed: on standard concealed can ∅ 60 mm
Surface-mounted design: directly onto the wall-cable insertion facilities from above, below and the rear
suitable for indoor and outdoor use
Type of connection: screw clamps (lift system)
RS 485 interface

SİSTEM ÖZELLİKLERİ
DÖKÜMANLAR / SERTİFİKALAR / YAZILIMLAR

Signals Optical: three LED lamp panelsAudio: signaling devices

Upper housing unit Plastic (PC+ABS-FR)

Colours Front cover: RAL 7035 (light gray)Case: pure white

Interfaces RS 485

Techn. data Operating temperature range: -20°C to +60°C

Dimensions (W x H x D): 80 x 80 x 11 (concealed) / 40 mm (surface-mounted)

Power supply: 8...30 V DC

Standard protection class

ID card reader,either Proximity reader Mifare

Proximity reader Legic

Technology 13.56 MHz

Subject to technical changes.

Veri Sayfası

Firma Profili

Özgür Sistem Yangın Güvenlik ve Bilişim Teknolojileri Ticaret Limited Şirketi; güvenlik otomasyon ve bilişim sistemleri konularındaki bilgi ve birikimini müşterilerine sunmak amacıyla 2002 yılında İstanbul’da kurulmuştur.

BOSCH DELTA 10xx - Bosch Proximity Reader

BOSCH ARD-1000MF-UP

BOSCH DELTA 10xx - Bosch Proximity Reader

Firma Profili

Ürünler

Servis Destek

Bize Ulaşın

Signals	Optical: three LED lamp panelsAudio: signaling devices
Upper housing unit	Plastic (PC+ABS-FR)
Colours	Front cover: RAL 7035 (light gray)Case: pure white
Interfaces	RS 485
Techn. data	Operating temperature range: -20°C to +60°C
Dimensions (W x H x D): 80 x 80 x 11 (concealed) / 40 mm (surface-mounted)
Power supply: 8...30 V DC
Standard protection class
ID card reader,either	Proximity reader Mifare
Proximity reader Legic
Technology	13.56 MHz
Subject to technical changes.
