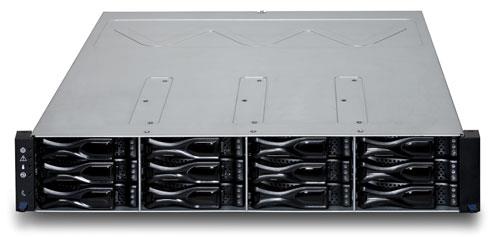

BOSCH DSA E-Series 2TB

Özgür Sistem
BOSCH DSA-N2E6X2-08AT

BOSCH DSA E-Series 2TB

iSCSIRAID5RAID6

BOSCH DSA-N2E6X2-08AT    BOSCH DSA-N2E6X2-12AT    BOSCH DSX-N1D6X2-12AT

  • Scale-out network storage solution: controller unit with 12 internal HDDs with up to 192 HDDs via state-of-the-art SAS interface-connected expansion units
  • Configurable hardware-based RAID protection (RAID-5 or RAID-6) for highest system performance
  • Redundant hot-swappable power supplies and cooling fans
  • Two 10 Gigabit Ethernet ports for highest speed iSCSI connectivity
  • Fully modular design for ease of service


Electrical requirements
Parameter Low range , High range
Nominal voltage 100 VAC , 240 VAC
Frequency 50 to 60 Hz , 50 to 60 Hz
Idle current 3.97 A , 1.63 A
Maximum operating current 4.25 A , 1.68 A
Sequential drive group spin up 4.27 A , 1.76 A
Simultaneous drive spin up 6.13 A , 2.71 A
System rating plate label 7.0 A , 2.9 A
Power ratings
KVA 0.400
AC Watts 399
BTU/h 1366
Note: for detailed information please see the NetApp E-Series Storage Systems Site Preparation Guide
Battery data

Number of batteries 2
Battery type Li-ion
Weight of battery 0.157 kg (0.346 lb)
Battery casing Pack
Battery group Accumulator
System hardware specifications
Chassis CE2600 controller-drive tray conforms to the 483 mm (19.0 in) rack standard
Power supplies Dual redundant, hot pluggable
Maximum disk drives 8 x 2 TB, 3.5”, Nearline SAS
Maximum net capacity ~13000 GB (RAID-5 configured)
DDR2 memory (system RAM) 2 GB
Integrated I/O 2 x 100 Mbps management port; 2 x 1/10 Gigabit Ethernet, copper
Remote management (via LAN) Yes (plus serial console on dedicated port)
Mechanical
Dimensions (H x W x D)

Controller-drive tray 86.4 x 482.6 x 552.5 mm (3.4 x 19 x 21.75 in)
Shipping carton 241.3 x 584.2 x 685.8 mm (9.5 x 23 x 27 in)
Weight
Maximum weight 23 kg (55.72 lb )
Maximum shipping weight 27.75 kg (61.2 lb)
Space requirements
Front—cooling 760 mm (30 in) clearance in front of the cabinet
Rear—cooling 610 mm (24 in) clearance behind the cabinet
Front of chassis—maintenance 760 mm (30 in) clearance in front of the cabinet
Rear of chassis—maintenance 610 mm (24 in) clearance behind the cabinet
Environmental
Temperature
Operating range (both cabinet and subsystem) +10 °C to +35 °C (+50 °F to +95 °F)
Maximum rate of change 10 °C (50 °F) per hour
Storage range -10 °C to +50 °C (+14 °F to +122 °F)

Relative humidity (non-condensing)
Operating range (both cabinet and subsystem) 20 to 80%
Storage range 10 to 90%
Acoustic noise
Sound power (standby operation) 65 dB max
Sound pressure (normal operation) 65 dBA max
Electrical requirements
Parameter Low range , High range
Nominal voltage 100 VAC , 240 VAC
Frequency 50 to 60 Hz , 50 to 60 Hz
Idle current 3.97 A , 1.63 A
Maximum operating current 4.25 A , 1.68 A
Sequential drive group spin up 4.27 A , 1.76 A
Simultaneous drive spin up 6.13 A , 2.71 A
System rating plate label 7.0 A , 2.9 A

Power ratings
KVA 0.400
AC Watts 399
BTU/h 1366
Note: for detailed information please see the NetApp E-Series Storage Systems Site Preparation Guide
Battery data
Number of batteries 2
Battery type Li-ion
Weight of battery 0.157 kg (0.346 lb)
Battery casing Pack
Battery group Accumulator
System hardware specifications
Chassis CE2600 controller-drive tray conforms to the 483 mm (19.0 in) rack standard
Power supplies Dual redundant, hot pluggable
Maximum disk drives 12 x 2 TB, 3.5”, Nearline SAS

Maximum net capacity ~20500 GB (RAID-5 configured)
DDR2 memory (system RAM) 2 GB
Integrated I/O 2 x 100 Mbps management port;2 x 1/10 Gigabit Ethernet, copper
Remote management (via LAN) Yes (plus serial console on dedicated port)
Mechanical
Dimensions (H x W x D)
Controller-drive tray 86.4 x 482.6 x 552.5 mm (3.4 x 19 x 21.75 in)
Shipping carton 241.3 x 584.2 x 685.8 mm (9.5 x 23 x 27 in)
Weight
Maximum weight 24.9 kg (54.9 lb)
Maximum shipping weight 29.65 kg (65.37 lb)
Space requirements
Front—cooling 760 mm (30 in) clearance in front of the cabinet
Rear—cooling 610 mm (24 in) clearance behind the cabinet
Front of chassis—maintenance 760 mm (30 in) clearance in front of the c

Rear of chassis—maintenance 610 mm (24 in) clearance behind the cabinet
Environmental
Temperature
Operating range (both cabinet and subsystem) +10 °C to +35 °C (+50 °F to +95 °F)
Maximum rate of change 10 °C (50 °F) per hour
Storage range -10 °C to +50 °C (+14 °F to +122 °F)
Relative humidity (non-condensing)
Operating range (both cabinet and subsystem) 20 to 80%
Storage range 10 to 90%
Acoustic noise
Sound power (standby operation) 65 dB max
Sound pressure (normal operation) 65 dBA max
Electrical requirements—expansion unit
Parameter Low range , High range
Nominal voltage 100 VAC , 240 VAC

Frequency 50 to 60 Hz , 50 to 60 Hz
Idle current 2.96 A , 1.23 A
Maximum operating current 3.03 A , 1.26 A
Sequential drive group spin up 4.23 A , 1.76 A
Simultaneous drive spin up 4.43 A , 1.83 A
System rating plate label 7.0 A , 2.9 A
Power ratings—expansion unit
KVA 0.276
AC Watts 276
BTU/h 954
Note: for detailed information please see the NetApp E-Series Storage Systems Site Preparation Guide
System hardware specifications—expansion unit
Chassis DE1600 controller-drive tray conforms to the 483 mm (19.0 in) rack standard
Power supplies Dual redundant, hot pluggable
Maximum disk drives 12 x 2 TB, 3.5”, Nearline SAS

Maximum net capacity ~20500 GB (RAID-5 configured)
Integrated I/O 6 Gb SAS
Mechanical—expansion unit
Dimensions (H x W x D)
Drive tray 86.4 x 482.6 x 552.5 mm (3.4 x 19 x 21.75 in)
Shipping carton 241.3 x 584.2 x 685.8 mm (9.5 x 23 x 27 in)
Weight
Maximum weight 27 kg (59.52 lb)
Maximum shipping weight 31.75 kg (70.0 lb)
Space requirements
Front—cooling 760 mm (30 in) clearance in front of the cabinet
Rear—cooling 610 mm (24 in) clearance behind the cabinet
Front of chassis—maintenance 760 mm (30 in) clearance in front of the cabinet
Rear of chassis—maintenance 610 mm (24 in) clearance behind the cabinet
Environmental—expansion unit

Temperature
Operating range (both cabinet and subsystem) +10 °C to +40 °C (+50 °F to +104 °F)
Maximum rate of change 10 °C (50 °F) per hour
Storage range -10 °C to +50 °C (+14 °F to +122 °F)
Relative humidity (non-condensing)
Operating range (both cabinet and subsystem) 20 to 80%
Storage range 10 to 90%
Acoustic noise
Sound power (standby operation) 65 dB max
Sound pressure (normal operation) 68 dB max
