BOSCH VG4-SFPSCKT

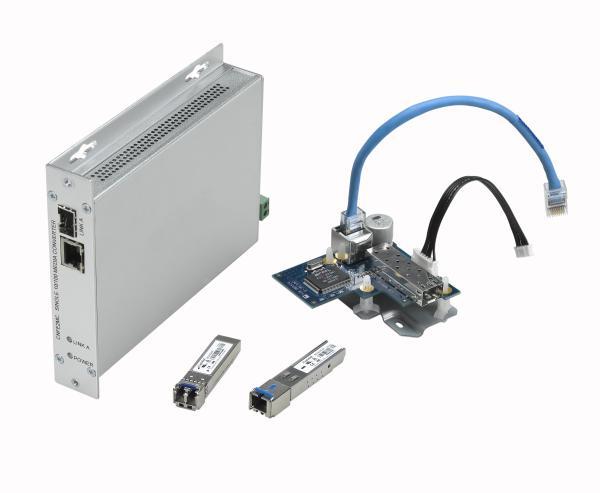

BOSCH Fiber Optic Media Converters

BOSCH VG4-SFPSCKT



  • Utilizes Small Form-factor Pluggable (SFP) modules
  • Multi-mode and single-mode modules available
  • Supports distances up to 20 km (12.4 miles)
  • Surface mount or rack mount capability

Description Fiber Optic Ethernet Media Converter kit.Requires a small form-factor pluggable (SFP) module (sold separately).
Data Interface Ethernet
Data Rate 10/100 MbpsIEEE 802.3 CompliantFull Duplex or Half Duplex Electrical PortFull Duplex Optical Port
Compatible Receiver CNFE2MC/IN
Installation Installed inside a VG4-A-PA1, VG4-A-PA2, VG4-A-PSU1 or a VG4-A-PSU2 power supply box, or in a MIC IP PSU, with supplied mounting hardware.Note: Wiring for the VG4-SFPSCKT must be routed through the proper conduit opening on the power supply box. Refer to the installation guide that accompanies the module.
LED Indicators
Power/Link (on circuit board)
Green Power is applied, fiber link is valid
Red Power is applied, fiber link is missing
Green/Flashing Red, rapid Power is appliedFiber link is validData is present and video is streaming from the camera to a network connection
Green/Flashing Red, slow Power is appliedFiber link is validData is present Video is not streaming from the camera, or the RJ45 connection to the camera is not valid
RJ-45 Connector
Right side, Flashing Green Data is present
Right side, Off No data is present

Left side, Amber Link is valid at 100 MB
Left side, Off If the right side is flashing green, link is valid at 10 MB
No LED lit Missing the network cable, defective network cable or the other end of the network cable is not connected
Electrical
Power 24 VAC @ 220 mA (supplied by the camera)
Current Protection Automatic resettableSolid-state current limiters
Circuit Board Meets IPC Standard
Mechanical
Dimensions (LxWxH) 7.4 x 7.1 x 3.8 cm (2.9 x 2.8 x 1.5 in.)
Shipping Weight 0.91 kg (2 lb)
Environmental
MTBF > 100,000 hours

Description Fiber Optic Ethernet Media Converter kit. Requires a small form-factor pluggable (SFP) module (sold separately).
Data Interface Ethernet

Data Rate 10/100 MbpsIEEE 802.3 CompliantFull Duplex or Half Duplex Electrical PortFull Duplex Optical Port
Installation Surface mount or rack mount using C1-IN rack (sold separately)
Connectors
Power Terminal block
Electrical RJ-45 (10/100 BASE-T/TX)
Socket SFP (10/100 BASE-FX)
LED Indicators
Link/Act
Green Indicates a good fiber connection
Flashing Green Indicates data is present on at least one side of the IP connection
No LED lit Indicates a loss of fiber connection
Power Green: power is suppliedNone: no power supplied
Green Power is supplied
No LED lit No power supplied
RJ-45 Connector

Right side, Flashing Green Data is present
Right side, Off No data is present
Left side, Amber Link is valid at 100 MB
Left side, Off If the right side is flashing green, link is valid at 10 MB
Electrical
Power
Supplied Power Pack Input: 90–264 VAC, 50/60 HzOutput: 9 VDC @ 1 A
Module: 8-15 VDC @ 220 mA
Current Protection Automatic resettableSolid-state current limiters
Circuit Board Meets IPC Standard
Mechanical
Dimensions (LxWxH) 16.0 x 13.0 x 2.8 cm (6.3 x 5.1 x 1.1 in.)
Shipping Weight 0.91 kg (2 lb)
Environmental
MTBF > 100,000 hours

Operating Temperature –40° C to +75° C (–40°F to +167°F)
Storage Temperature –40° C to +85° C (–40°F to +185°F)
Relative Humidity 0% to 95% (non-condensing)
Regulatory Compliance cUL, UL, RoHS

Description Interchangeable modules available for use with MMF or SMF optical fiber.
Data Interface Ethernet
Data Rate 10/100 MbpsIEEE 802.3 Compliant
Mechanical
Dimensions (LxWxH)
SFP-2, SFP-3 55.5 x 13.5 x 8.5 mm (2.2 x 0.5 x 0.3 in.)
SFP-25, SFP-26 63.8 x 13.5 x 8.5 mm (2.5 x 0.5 x 0.3 in.)
Weight (all SFP modules) 0.23 kg (.05 lb)

  Type , Connector , Wavelength (transmit/receive) , Max. Distance

SFP-2 MMF , Duplex LC , 1310 nm / 1310 nm , 2 km (1.2 miles)
SFP-3 SMF , Duplex LC , 1310 nm / 1310 nm , 20 km (12.4 miles)
SFP-25 MMF , Single SC , 1310 nm / 1550 nm , 2 km (1.2 miles)
SFP-26 MMF , Single SC , 1550 nm / 1310 nm , 2 km (1.2 miles)
Fiber Compatibility
Optical Fiber Compatibility, MMF 60/125 µm MMF. For 50/125 µm fiber, subtract 4 dB from the specified optical budget value. Must meet or exceed fiber standard ITU-T G.651.
Optical Fiber Compatibility, SMF 8–10/125 µm SMF. Must meet or exceed fiber standard ITU-T G.652.
Optical Distance Specifications Specified transmission distances are limited to the optical loss of the fiber and any additional loss introduced by connectors, splices, and patch panels. The modules are designed to operate over the entire optical loss budget range, so they do not require a minimum loss in order to operate.
Description Rack mount card cage designed to hold a maximum of 14 CNFE2MC/IN modules
LED Indicators
Power
Red Power is supplied
No LED lit No power
Electrical
Input Voltage 90–264 VAC at 1 A maximum

Output Voltage 9 VDC ± 5% at 6.5 A at 75°C (167°F)
Fusing 1.25 A slow blow (rack power supply)(plug-in modules individually electronically fused)
Power Indicator Red LED
AC Line Cord Detachable, IEC-connected. US, European, and UK power cords supplied.
Mechanical
Dimensions (LxWxH) 48 x 19 x 15 cm (19.0 x 7.5 x 6.0 in.)
Rack Slots Fourteen (14) 1-in. slots available
Shipping Weight 3.4 kg (7.5 lb)
Environmental
MTBF >100,000 hours
Operating Temperature –40° C to +75° C (–40°F to +167°F), ambient
Storage Temperature –40° C to +85° C, (–40°F to +185°F), ambient
Heat Generation 240 BTU
Regulatory Compliance FCC part 15, , cUL, UL, RoHS
