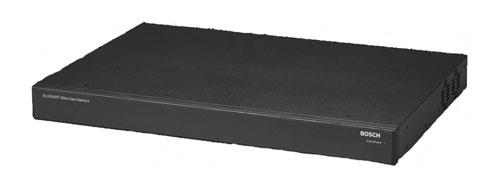

| Group ID |
Three (3) rotary switches |
| Rear Panel Connectors |
|
| Bilinx Video Inputs |
16 BNC connectors; accepts standard NTSC/PAL baseband composite video signals or video signals from Bilinx-capable cameras; 0.5–1.4 Vp-p; 75 Ohm terminated; TVS protected inputs provide improved protection against transients |
| Video Outputs |
Male 34-pin video ribbon connector; provides 16 video outputs (unity gain using active circuitry); mating 2 m (6°ft) 16-channel LTC 8809/00 cable included |
| Bi-Phase Data Interface |
6-position removable terminal block with "+"," –", and "shield" input connections and "+"," –", and "shield" looping output connections, with attached end-of-line termination resistor |
| PC Interface |
Male 9-pin sub D-connector |
| RS-232 Data Interface1 |
Female 9-pin sub D-connector for Allegiant RS-232 interface |
| RS-485 Data Interface1 |
Female 9-pin sub D-connector for Allegiant RS-485 interface port connection |
| RS-485 ‘Looping’ Data Interface1 |
Female 9-pin sub D-connector, for data interface to cascaded LTC 8016 unit |
| 1.One (1), 2 m (6 ft) data interface cable is supplied for use with the Allegiant RS-232 interface, the Allegiant RS-485 interface, or the cascade configuration looping connection. |
|
| Ethernet Interface |
RJ-45 connector, supporting 10/100 BaseT (reserved for future use) |
| Power Cord |
Two (2) detachable 3-wire IEC cords with grounded plug, 1.83 m (6 ft.); one with European continental plug type and one with US plug type |
| Temperature |
|
| Operating |
0°C to 50°C (32°F to 122°F) |
| Storage |
–10°C to 70°C (14°F to 158°F) |
