BOSCH TC9209MM-W

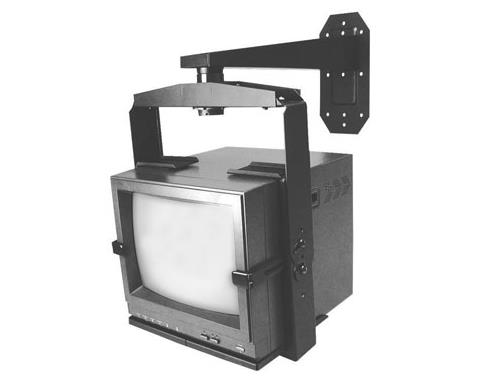

BOSCH TC9209MM-W Series Monitor Mounts

BOSCH TC9209MM-W    BOSCH TC9217MM-W    BOSCH TC9220MM-W

BOSCH TC9220MM-C     BOSCH TC9217MM-C     BOSCH MM3000

  • For mounting a 23 cm (9 in.) to a 53 cm (21 in.) monitor
  • Wide range of sizes
  • For wall and ceiling installations
  • Adjustable tilt up to 30 and 360° swivel
  • Top and front roll-out protection
  • Sturdy construction

Monitor Size 23 cm (9 in.) to 30 cm (12 in.)
Maximum Load 18 kg (40 lb)
Pan 360°
Tilt 45° maximum forward
Finish Off-white
Dimensions See drawing1
Weight 3.62 kg (8 lb)
1. Dimensions are shown in inches; dimensions in parenthesis are in centimeters.
Monitor Size 33 cm (13 in.) to 43 cm (17 in.)
Maximum Load
Concrete Ceiling 65 kg (150 lb)
Wood Stud Ceiling 57 kg (125 lb)
Pan 360°
Tilt Range 30°
Finish Black

Dimensions See drawing
Weight 14.2 kg (31.3 lb)
Monitor Size 48 cm (19 in.) to 53 cm (21 in.)
Maximum Load
Concrete Ceiling 65 kg (150 lb)
Wood Stud Ceiling 57 kg (125 lb)
Pan 360°
Tilt Range 30°
Finish Black
Dimensions See drawing
Weight 16.7 kg (36.7 lb)
Monitor Size 23 cm (9 in.) to 33 cm (13 in.)
Maximum Load 22.7 kg (50 lb)
Pan 360°
Tilt Range 0°/5°/10°

Finish Black
Dimensions See drawing
Weight 3.9 kg (8.5 lb)
Monitor Size 48 cm (19 in.) to 53 cm (21 in.)
Maximum Load
Concrete Wall 68 kg (150 lb)
Wood Stud Wall 56.7 kg (125 lb)
Pan 360°
Tilt Range 30°
Finish Black
Dimensions See drawing
Weight 21.3 kg (46.9 lb)
Bosch MonitorModel No. CeilingMount , WallMount
Monochrome
LTC 2009/51, /61 MM3000 , TC9209MM-W

LTC 2012/51, /61 MM3000 , TC9209MM-W
LTC 2017/50, /60 TC9217MM-C , N/A
LTC 2020/91 TC9220MM-C , TC9220MM-W
Color
LTC 2810/91 TC9217MM-C , N/A
LTC 2813/60, /90 TC9217MM-C , N/A
LTC 2814/90 TC9217MM-C , N/A
LTC 2821/91 TC9220MM-C , TC9220MM-W
LTC 2910/50, /60, /90 MM3000 , TC9209MM-W
LTC 2915/91 TC9217MM-C , N/A
LTC 2917/90, /91 TC9217MM-C , N/A
LTC 2919/90 TC9220MM-C , TC9220MM-W
